[nitishjaswal]

Hello All,



I want to remove the values from the Y axis. I am not able to find whihc attribute should I use for that in graph. To remove the x axis values I have used showNames='0'. Please help me here regarding this.







Thanks

Nitish

[Madhumita]

Hello,

Welcome to FusionCharts Forum.

If you are using FusionCharts Free please set showDivLineValue='0' and showLimits='0' in the <graph> element and see if this helps.

[nitishjaswal]

Hello Madhumita,



Thank you very much. This is working now.



Thanks

Nitish

[srividya_sharma]

You are most welcome.

Cheers to Madhumita!

[Madhumita]

Hey,

You are most welcome.

Please revert in case of further queries.

[nitishjaswal]

Hello Madhumita,



lets have one more go.



I have menu drop down on top and graph in the center.



When I mouse over the menus the menu drop down comes under fusionchats.

I am using mozilla ff..



Please help me on this issue.



Thanks

[Madhumita]

Hey Nitish,

For this you need to render the charts in transparent mode.

e.g. <script type="text/javascript">
var myChart = new FusionCharts("../FusionCharts/Column3D.swf", "myChartId", "900", "300", "0", "0");
myChart.setDataURL("Data.xml");
myChart.setTransparent(true);
myChart.render("chartdiv");
</script>

I hope this helps you.

[nitishjaswal]

Thank you it works.

[Madhumita]

Hey Nitish,

You are most welcome.

[nitishjaswal]

Hello team,



One more help please.



I am using FCF_Area2D.swf graph and I am using 120*80 size of the graph.



But there is also a lot of white space around the graph which creates some problem.



Please give the solution for this to remove the extra space around the graph



Thanks

[Madhumita]

Hello,

You can use the chart margins functionality to fix this.

Chart Margins refers to the empty space left on the top, bottom, left and right of the chart. That means, FusionCharts would leave that much amount of empty space on the chart, before it starts plotting.

• chartLeftMargin="Numerical Value (in pixels)" : Space to be left unplotted on the left side of the chart.
• chartRightMargin="Numerical Value (in pixels)" : Empty space to be left on the right side of the chart
• chartTopMargin="Numerical Value (in pixels)" : Empty space to be left on the top of the chart.
• chartBottomMargin="Numerical Value (in pixels)" : Empty space to be left at the bottom of the chart.

[nitishjaswal]

its done.

Thanks

[Madhumita]

Hey Nitish,

You are welcome.

[nitishjaswal]

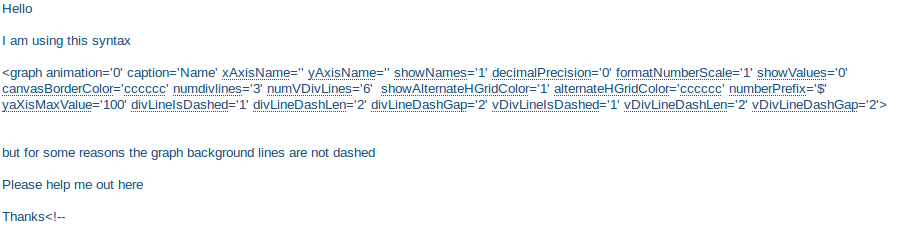

Hello



I am using this syntax









but for some reasons the graph background lines are not dashed



Also please find attached the attachement.





Please help me out here



Thanks

Attached image(s)

•

[Basundhara Ghosal]

Hi Nitish,

I am afraid, FusionCharts Free does not support this.

[nitishjaswal]

Hello Team,



Please help me out here with any other solution for dashed lines.



Thanks in Advance

[Basundhara Ghosal]

Hi Nitish,

Please try using the latest version of FusionCharts(version 3.1.1) that supports all the functionality same as a licensed version only with a water-mark on it.

Please refer to the link below to download the latest version of FusionCharts:-

Ref.- http://www.fusioncharts.com/Download.asp

Hope this helps.

[nitishjaswal]

Hello Team,



I have attached the graph image below.



My problem is all values are not in line with the x-axis.



Please give some solution so that all values should lies on line point.



e.g. currently the first point lies mar 31 and apr 01 should be on mar 31 line similarly for others point.



My graph width is 660 and height 300.



Thanks

Attached image(s)

•

[nitishjaswal]

Can anybody answer the above please how to put points on line in line graph?





Thanks

[Basundhara Ghosal]

Hi Nitish,

Could you please send us the XML codes that you are using as an attachment so that we might test it in our lab?

Awaiting your reply.

[nitishjaswal]

Hello Please find attach the xml.







Thanks

Attached File(s)

•  xml.xml (1.14K)
  Number of downloads: 22

[nitishjaswal]

Hello team,



please help me here of give some example of working xml of my problem



Thanks

[nitishjaswal]

Hello team,



please help me here of give some example of working xml of my problem



Thanks

[Basundhara Ghosal]

Hi Nitish,

Currently we are looking into the issue and will get back to you as soon as possible.

[nitishjaswal]

Hello everyone in team.



Have you look out the issue now.



Its being so long now. can you please correct the problem here



Thanks

[nitishjaswal]

Hello everyone in team.



Have you look out the issue now.



Its being so long now. can you please correct the problem here



Thanks

[Basundhara Ghosal]

Hi Nitish,

We have tested the XML in our lab and is not able to replicate the issue.

Please take a look into the screen-shot that we are sending you as an attachment.

Attached File(s)

•  rendered chart.bmp (853.02K)
  Number of downloads: 25

[nitishjaswal]

Hello Team,



I have a look on the screen shot. This is not what I need.



I need to have that dot (circle on the line.)



Can you give me what correct attributes we need to use to bring that circle or point on the line.



Thanks

[Basundhara Ghosal]

Hi Nitish,

Please try using the attribute "anchorSides" and "anchorRadius" in the <dataset> element.

Ref.- http://www.fusioncharts.com/free/docs/Contents/ChartSS/XML_MSLine2D.html

I hope this helps.
